PRODUCT INFORMATION

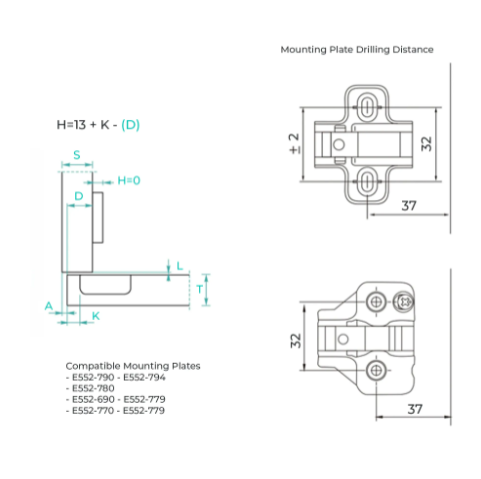

Compatible Mounting Plates: E552-790 - E552-794, E552-780, E552-690 - E552-694 and E552-770 - E552-779
Depth Of Hinge Cup: 11.5mm
Range Of Door Thickness: 16-24mm
Possible Drilling Distances On The Door (K): 3-6mm
Lifetime Guarantee
FIRA Level H Tested To Over 100,000 Cycles
Full Overlay Doors Use 0mm Crank
To Create Half Overlay & Inset Applications Use 9 or 18mm Mounting Plates

TECHNICAL INFORMATION

Opening Angle: 155.0000

Cup Diameter: 35mm

Function: Soft Close, Zero Protrusion
