PRODUCT INFORMATION

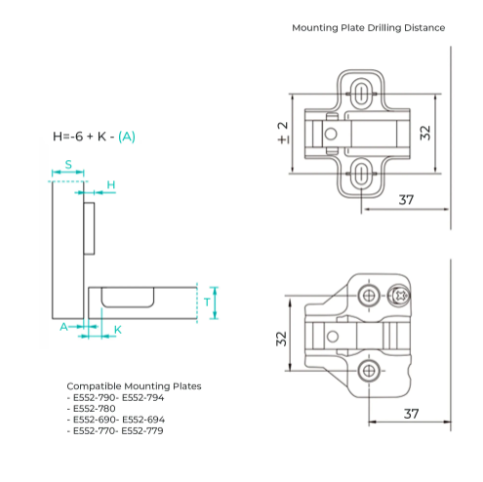

Compatible Mounting Plates: E552-790 - E552-794, E552-780, E552-690 - E552-694 and E552-770 - E552-779
Depth Of Hinge Cup: 10mm
Range Of Door Thickness: 14-21mm
Possible Drilling Distances On The Door (K): 3-7mm
Lifetime Guarantee
Fira Level H Tested To Over 100,000 Cycles

TECHNICAL INFORMATION

Opening Angle: 100.0000

Cup Diameter: 35mm

Function: Soft Close
