PRODUCT INFORMATION

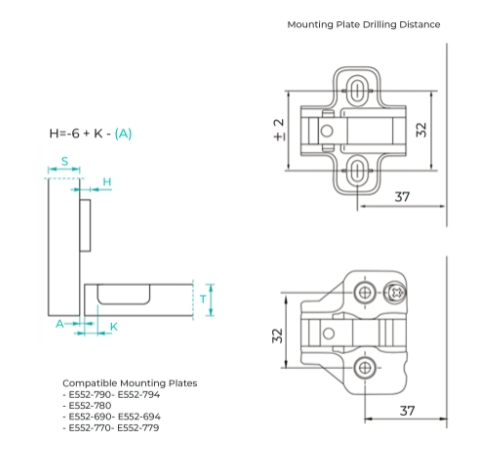

Compatible Mounting Plates: E552-790 - E552-794, E552-780, E552-690 - E552-694 and E552-770 - E552-779
Depth of hinge cup: 10mm
Range of door thickness: 14-24mm
Possible drilling distances on the door (K): 3-7mm
Can be used in conjunction with E502-600 hinges
Lifetime Guarantee
Fira Level H Tested to over 100,000 cycles
Cam Adjustable

TECHNICAL INFORMATION

Opening Angle: 100.0000

Cup Diameter: 35mm

Function: Non Soft Close
