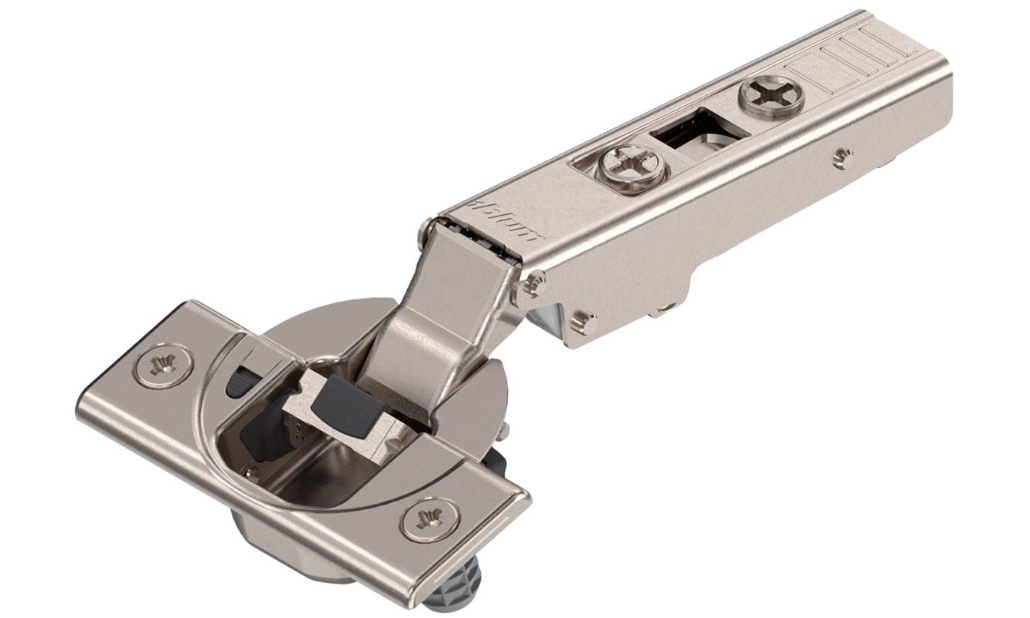

The integrated Blumotion hinge offers all the benefits of Clip-Top hinges along with integrated soft close.

• Integrated Blumotion soft close.
• Convenient "spiral-tech" depth adjustment.
• Door closing mechanism (sprung).
• Tool free door to carcase assembly and removal.
• 3-dimensional adjustment (with suitable mounting plate)

Opening: 110

Boss: Knock-in

Overlay: Full

Box Qty: 250

Additional Features / Properties

Cover cap type: 70T3504 – boss cover cap

Type of side adjustment: With screw

Type of depth adjustment: convenient with spiral screw

Item package: 1 piece

diametre of fixing holes: 8 mm

Maximum drilling distance: 7 mm

Minimum drilling distance: 3 mm

Fixed dimension / factory setting: 11 mm

Weight: 762.64 kg

collision measurement (hinge arm height): 21.5 mm

Cranking: Overlay application

Country of origin: AT

Delivery unit: 250

Height Outside carton: 26.4 cm

Layer quantity: 2000

Lenght Outside carton: 37.5 cm

Palette height without transport equipment: 106 cm

Pallet quantity: 8000

Replenishment lead time: 2 day

Transport time: 2 day

Volume/1000: 120.84 dm³

Weight (tare)/1000: 2.079 kg

Width Outside carton: 29.9 cm

hinge variant: With integrated BLUMOTION

mounting plate system: CLIP

Colour/surface: Nickel plated

Opening angle: 110

Closing mechanism: with spring

SAP-Distribution status: 20 - On sale

SAP - Program allocation: SP - Stock Program

Side adjustment: +/- 2 mm mm

Depth adjustment: + 3/- 2 mm mm

Boss assembly: knock-in

Boss material: Steel boss

boss finish: Nickel plated

Boss adjustment: none

door material: Wood

Gap1.5 mm

Weight based on10000 Piece

application: standard

hingepackagingi: ndustrial packing

Packaging unit :1250

Packaging unit: 20

Packaging unit: 30

Customs tariff number: 8302100090
