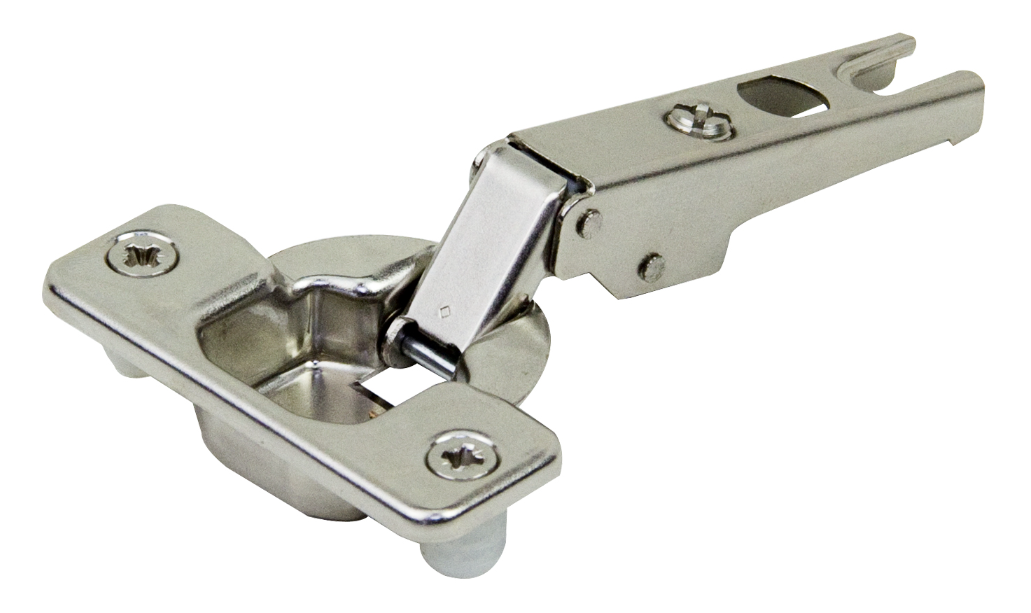

• All metal hinge, nickel plated.
• 100 degree opening angle.
• Door closing mechanism (sprung).
• Slide on hinge arm.
• 3-dimensional adjustment (with suitable mounting plate).

Opening :100

Boss: Knock in- dowelled

Overlay: Full

Box Qty: 250

Additional Features / Properties

Cover cap type: 90M2503

Type of side adjustment: With screw

Type of depth adjustment: With screw

Item package: 1 piece

diametre of fixing holes: 8 mm

Maximum drilling distance: 6 mm

Minimum drilling distance: 3 mm

Fixed dimension / factory setting: 11 mm

Weight: 469.05 kg

collision measurement (hinge arm height): 20 mm

Cranking: Overlay application

Country of origin: AT

Delivery unit: 250

Height Outside carton: 30.8 cm

Layer quantity: 3000

Lenght Outside carton: 37.5 cm

Palette height without transport equipment: 92 cm

Pallet quantity: 9000

Replenishment lead time: 11 day

Transport time: 2 day

Volume/1000: 93.23 dm³

Weight (tare)/1000: 1.585 kg

Width Outside carton: 19.9 cm

mounting plate system: MODUL

Colour/surface: Nickel plated

Opening angle: 100

Closing mechanism: with spring

SAP-Distribution status: 20 - On sale

SAP - Program allocation: NS - Non Standard Program

Side adjustment: +/- 2 mm mm

Depth adjustment: +/- 2 mm mm

Boss assembly: knock-in

Boss material: Steel boss

boss finish: Nickel plated

Boss adjustment: none

door material:Wood

Gap: 0 mm

Weight based on: 10000 Piece

application: standard hinge

packaging: industrial packing

Packaging unit: 1250

Packaging unit: 20

Packaging unit: 30

Customs tariff number: 8302100090
