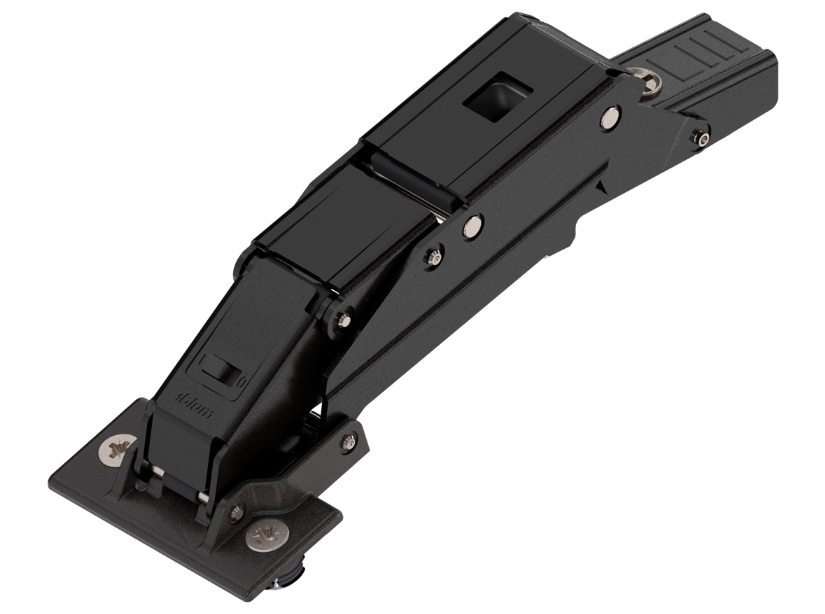

Opening: 110

Boss: EXPANDO-T

Overlay: All

Box Qty: 250

Additional Features / Properties

Cover cap type: 70T7504 – boss cover cap

Type of side adjustment: With screw

Type of depth adjustment: convenient with spiral screw

Item package: 1 piece

diametre of fixing holes: 10 mm

drilling depth of fixing holes: 6 mm

Maximum drilling distance: 46 mm

Minimum drilling distance: 23.5 mm

Fixed dimension / factory setting: 3.5 mm

Weight: 1570.92 kg

collision measurement (hinge arm height): 56.5 mm

Cranking: Overlay application

Country of origin: AT

Delivery unit: 25

Height Outside carton: 32.7 cm

Layer quantity: 1000

Lenght Outside carton: 55.6 cm

Palette height without transport equipment: 98 cm

Pallet quantity: 3000

Replenishment lead time: 11 day

Transport time: 2 day

Volume/1000: 313.6 dm³

Weight (tare)/1000: 12.086 kg

Width Outside carton: 19.9 cm

hinge variant: With integrated BLUMOTION

mounting plate system: CLIP

Colour/surface: Onyx black

Opening angle: 110

Closing mechanism: with spring

SAP-Distribution status: 20 - On sale

SAP - Program allocation: NS - Non Standard Program

Side adjustment: +/- 2 mm mm

Depth adjustment: + 3/- 2 mm mm

Boss assembly: EXPANDO T

Boss material: Zinc boss

boss finish: Onyx black

Boss adjustment: none

door material: Wood

Gap: 1.5 mm

Weight based on: 10000 Piece

application: Hinge for thin doors

packaging: Commercial packing

Packaging unit:  125

Packaging unit : 2125

Packaging unit:  30

Customs tariff number: 8302100090
