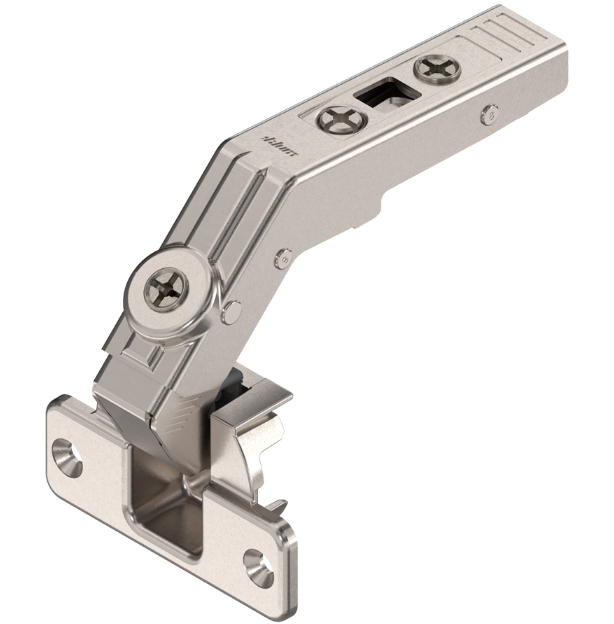

For corner cabinets with bi-fold doors. For use in combination with 170° hinge. This hinge requires special drilling which is not offered as part of our hinge hole drilling service.

Opening: 60

Boss: Screw on

Box Qty: 25

Additional Features / Properties

Cover cap type: 70.1503

Type of side adjustment: With screw

Type of depth adjustment: convenient with spiral screw

Item package: 1 piece

Maximum drilling distance: -5 mm

Minimum drilling distance: -5 mm

Fixed dimension / factory setting: 0 mm

Weight: 1085.6 kg

collision measurement (hinge arm height): 20.5 mm

Country of origin: AT

Delivery unit: 25

Height Outside carton: 32.2 cm

Layer quantity: 1500

Lenght Outside carton: 37.5 cm

Palette height without transport equipment: 97 cm

Pallet quantity: 4500

Replenishment lead time: 2 day

Transport time: 2 day

Volume/1000: 206.93 dm³

Weight (tare)/1000: 8.864 kg

Width Outside carton: 19.9 cm

mounting plate system: CLIP

Colour/surface: Nickel plated

Opening angle: 60

Closing mechanism: with spring

SAP-Distribution status: 20 - On sale

SAP - Program allocation: SP - Stock Program

Side adjustment: +/- 2 mm mm

Depth adjustment: + 3/- 2 mm mm

Boss assembly: screw-on

Boss material: Zinc boss

boss finish: Nickel plated

Boss adjustment: none

door material: Wood

Gap: 1.5 mm

Weight based on: 10000 Piece

application: bi-fold

hingepackaging: Commercial packing

Packaging unit: 125

Packaging unit: 2125

Packaging unit:  30

Customs tariff number: 8302100090
