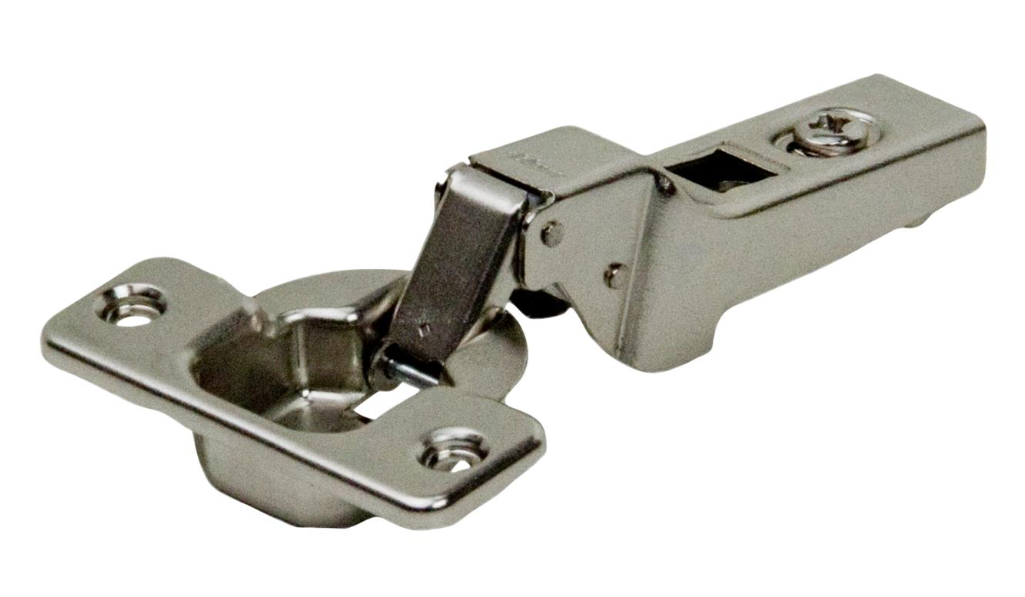

• All metal hinge, nickel plated.
• 100 degree opening angle.
• Door closing mechanism (sprung).
• Tool-free door-to-carcass assembly and removal.
• 3-dimensional adjustment (with suitable mounting plate).

Opening: 100

Boss:Screw on

Overlay:Half

Box Qty: 250

Additional Features / Properties

Cover cap type: 94M3603

Type of side adjustment: With screw

Type of depth adjustment: With screw

Item package: 1 piece

Maximum drilling distance; 6 mm

Minimum drilling distance: 3 mm

Fixed dimension / factory setting: 1.5 mm

Weight: 671.45 kg

collision measurement (hinge arm height): 30 mm

Cranking: Dual application

Country of origin: AT

Delivery unit: 250

Height Outside carton: 26.4 cm

Layer quantity: 2000

Lenght Outside carton: 37.5 cm

Palette height without transport equipment: 106 cm

Pallet quantity: 8000

Replenishment lead time: 2 day

Transport time: 2 day

Volume/1000: 120.84 dm³

Weight (tare)/1000: 2.079 kg

Width Outside carton: 29.9 cm

mounting plate system: CLIP

Colour/surface: Nickel plated

Opening angle: 100

Closing mechanism: with spring

SAP-Distribution status: 20 - On sale

SAP - Program allocation: SP - Stock Program

Side adjustment: +/- 2 mm mm

Depth adjustment: plus 3/minus 1 mm mm

Boss assembly: screw-on

Boss material: Steel boss

boss finish: Nickel plated

Boss adjustment: none

door material: Wood

Gap: 1.2 mm

Weight based on: 10000 Piece

application: standard hinge

packaging: industrial packing

Packaging unit:  1250

Packaging unit:  20

Packaging unit:  30

Customs tariff number: 8302100090
