WARNING: If this hinge is being used in furniture that can be accessed by small children it should be noted that it is possible for small fingers to get in-between the working mechanism of the hinge. In these cases a 155° could be used as an alternative or all relevant doors should be fitted with child safety latches. This warning should be passed onto subsequent users of the product.

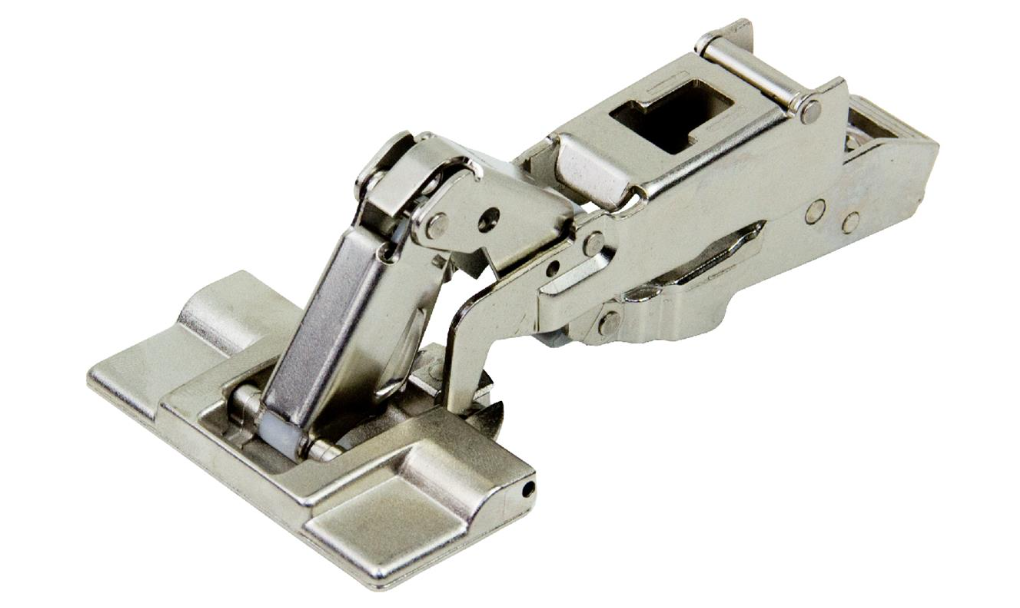

Opening: 170

Boss: Inserta

Overlay: Full

Cover cap type: 80.6507

Type of side adjustment: With screw

Type of depth adjustment: convenient with spiral screw

Item package: 1 piece

diametre of fixing holes: 8 mm

Maximum drilling distance: 8 mm

Minimum drilling distance: 3 mm

Fixed dimension / factory setting: 11 mm

Weight: 2036.22 kg

collision measurement (hinge arm height): 65 mm

Cranking: Overlay application

Country of origin: AT

Delivery unit: 125

Height Outside carton: 35.1 cm

Layer quantity: 750

Lenght Outside carton: 39.8 cm

Palette height without transport equipment: 105 cm

Pallet quantity: 2250

Replenishment lead time: 2 day

Transport time: 2 day

Volume/1000: 425.6 dm³

Weight (tare)/1000: 6.923 kg

Width Outside carton: 37.5 cm

hinge variant: for BLUMOTION 973A

mounting plate system: CLIP

Colour/surface: Nickel plated

Opening angle: 170

Closing mechanism: with spring

SAP-Distribution status: 20 - On sale

SAP - Program allocation: SP - Stock Program

Side adjustment: +/- 2 mm mm

Depth adjustment: + 3/- 2 mm mm

Boss assembly: INSERTA

Boss material: Zinc boss

boss finishNickel plated

Boss adjustment: none

door material: Wood

Gap: 1.5 mm

Weight based on: 10000 Piece

application: wide angle

hingepackaging: industrial packing

Packaging unit: 1125

Packaging unit: 20

Packaging unit:  30

Customs tariff number: 8302100090
