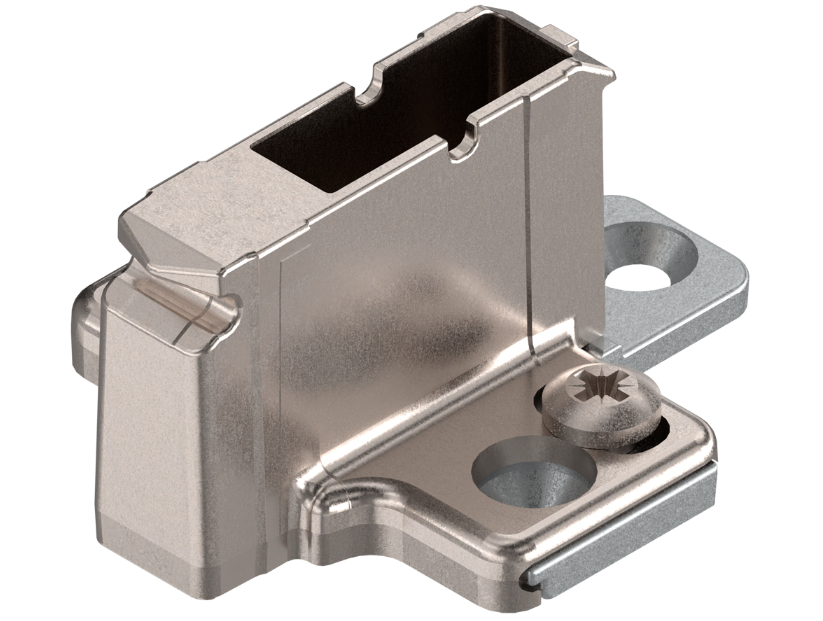

For use with In-Frame door systems. Can be used with CLIP top and CLIP hinges only.

Height: 18mm

Type: Cruciform

Box Qty: 250

Additional Features / Properties

Item package1 piece

diametre of fixing holes5 mm

drilling depth of fixing holes11.5 mm

Distance between fixing positions32 mm

Weight581.96 kg

Height adjustment+/- 2 mm

Height26.5 mm

Country of originAT

Delivery unit50

Height Outside carton31.4 cm

Layer quantity3000

Lenght Outside carton38.3 cm

Palette height without transport equipment94 cm

Pallet quantity9000

Replenishment lead time2 day

Transport time2 day

Volume/1000100.27 dm³

Weight (tare)/10003.916 kg

Width Outside carton17.3 cm

Fixingfor system screws

Mounting plates drilling patterndrilling pattern 1/cruciform mounting plate

Spacing18 mm

Shape of mounting plateCruciform

Mounting plates height adjustmentthrough lower and upper part/screws

Upper part materialZinc

Finishnickel plated

mounting plate systemCLIP

Angle0

Colour/surfaceNickel plated

SAP-Distribution status20 - On sale

SAP - Program allocation

SP - Stock Program

Weight based on10000 Piece

packagingCommercial packing

Packaging unit 150

Packaging unit 2250

Packaging unit 30

distance cabinet front edge to first fixing position37 mm

Customs tariff number8302100090
